This is a guide to the Mixamo Control Rig asset for Unreal Editor v5.5 onwards, included with the plugin as of v2.3.3.

This Control Rig replicates a lot of the same functionality and controls found in the CR_Mannequin_Body rig included in the Third Person Template and should be immediately familiar to anyone who has used that rig before.

It is intended for authoring and editing animations for Mixamo characters directly inside the Unreal Editor.

• Dynamic control setup designed to work with all Mixamo characters.
• Seamless IK / FK control switching for arms and legs.
• Reverse foot control setup.
• Layered support for animation editing.
• Root motion support.
• As of Unreal Engine 5.7, it will also correctly animate the standard IK bones now included on retargeted Mixamo skeletons.

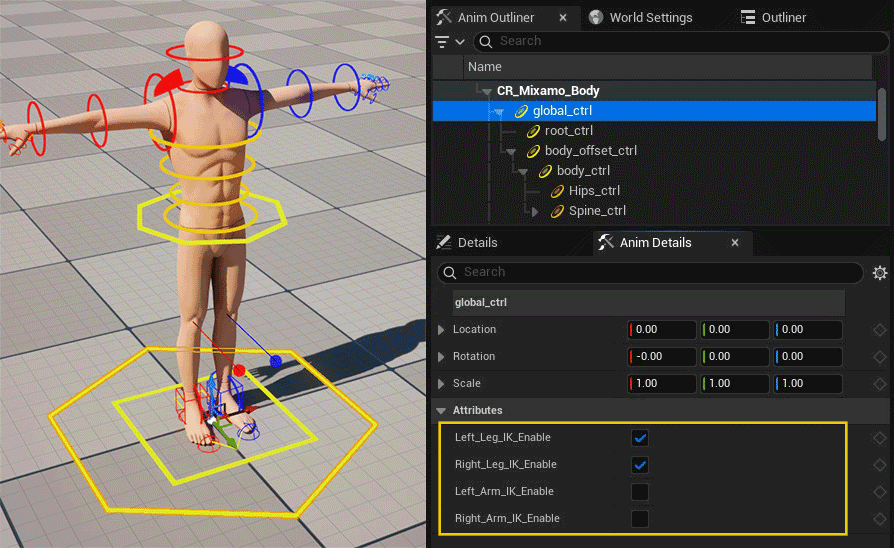

The IK / FK mode for the arms and legs can be changed from the Anim Details panel for the global_ctrl. Switching modes will automatically add keyframes for the relevant controls in the timeline for a seamless transition between modes.
